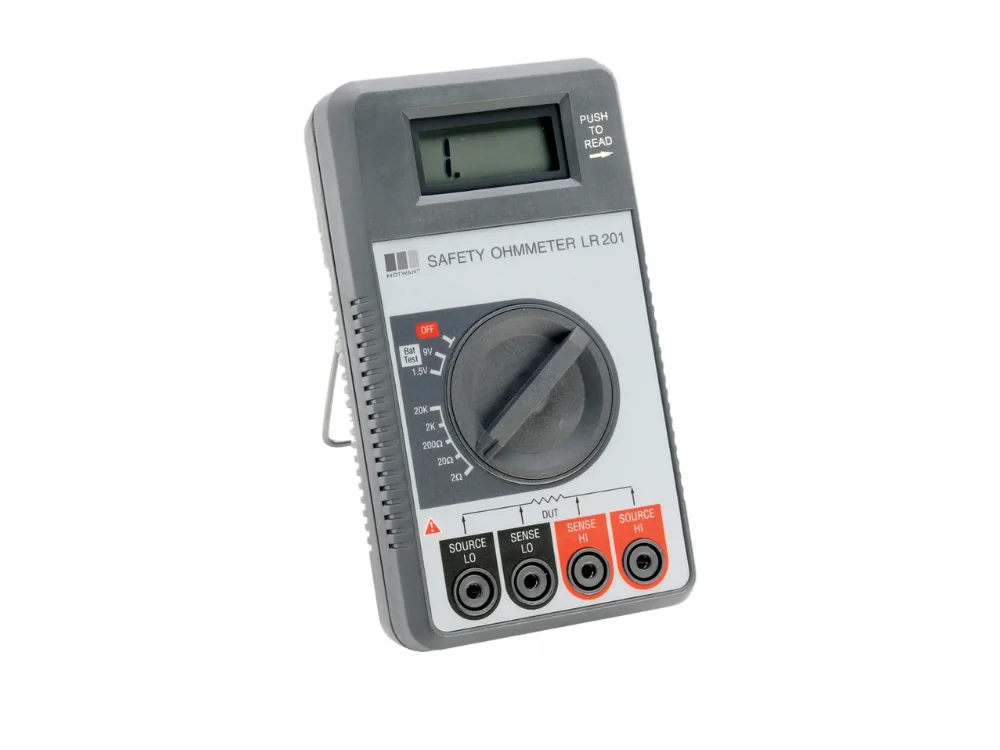

- 3½ Digit LED display.
- Resolution 1mΩ on 2Ω range.
- Battery Operated.
- (9V cell, type 216, 1.5 V cell, Sony Lr44 or Equivalent).
- 4 Wire Measurements to avoid lead resistance.
- Fully protected against reversal of battery polarity & over loads.
- ‘PUSH TO READ’ switch facility
- Facility to check “LOBAT” for 9V & 1.5V batteries.
| Technical Specifications | |
| General Specifications | |
| Environment | Operating Temp.: 0°C to 55°C |
| Storage Temp. | -20°C to 70°C |
| Humidity | Less than 90% RH |
| Overage | Display Show (1) with other digits blank |
| Dimensions | 100mm (W) x 180mm (H) x 54 mm (D) Approx |
| Weight | Approx 0.890 Kg with accessories |
| Electrical Specifications | At 25°C ± 3°C, 55% RH ± 10% |
| Temp. Coefficient | 200 ppm / °C |
| Resistance Range | ||||
| RANGE | MAX. READING | MAX. CURRENT | ACCURACY | RESOLUTION |
| 2 Ω | 1.999Ω | 10mA | ± 0.5 % of reading ± 4 digits | 1mΩ |
| 20 Ω | 19.99Ω | 1mA | ± 0.5 % of reading ± 4 digits | 10mΩ |
| 200 Ω | 199.9Ω | 0.1mA | ± 0.5 % of reading ± 4 digits | 100mΩ |
| 2 KΩ | 1.999KΩ | 0.01mA | ± 0.5 % of reading ± 4 digits | 1Ω |
| 20 KΩ | 19.99KΩ | 0.01mA | ± 0.5 % of reading ± 4 digits | 10Ω |
