Relay Test Set

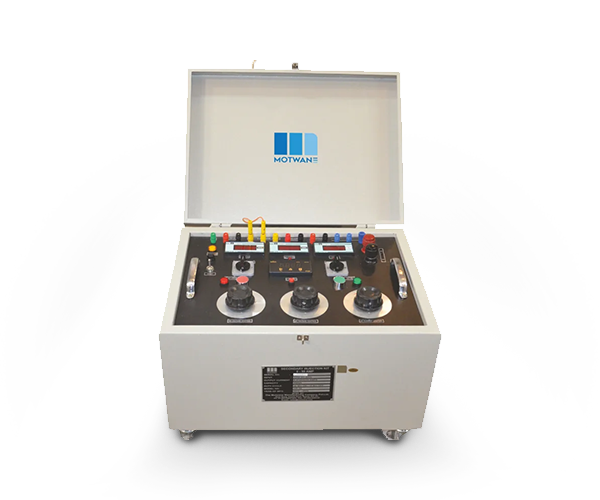

The Motwane RTS Series, often referred to as the Secondary Current Injection Kit, is a handy and budget-friendly tool designed for testing protective relays that operate on both voltage and current. Crafted with precision and user-friendliness in mind, it ensures reliable performance for testing relays and protection systems.
Technical Specifications
| Technical Specifications | |
| Model: | MOT-SIK10 MOT-SIK20 MOT-SIK50 MOT-SIK100 MOT-SIK200 |
| Output Current: | 0-10A 0-20A 0-50A 0-100A 0-200A |
| Selectable Current Ranges (O/P current display on % Ammeter): | 0-1-5-10A 0-1-5-10-20A 0-1-5-10-25-50A 0-1-5-10-25-50-100A 0-1-5-10-25-50-100-200A |
| Burden: | 200VA 400VA 600VA |
| O/P DC Voltage: | 0-250V DC |
| O/P AC Voltage: | 0-250V AC |
| Voltage Accuracy: | ±1.5% of full scale reading ±2 digits |
| Voltage resolution: | 1V |
| Current Accuracy: | ±1.5% of full scale reading ±2 digits |
| Current resolution: | 1% of the full scale |
| Timer Range: | 0.0001-9999 seconds, auto-ranging, digital timer |
| Timer Accuracy: | ±0.05% ±2 Counts |
| Duty Cycle: | 30Min ON, 10Min OFF |
| Mode of Operation: | Manual |
| Display: | LED Seven Segment Digital Display Meters |
| Indications: | Bright LED for Power ON & Test ON |
| Main Supply: | 230 Vac, 50/60Hz ±10%, 1 Phase |
| Protection and Safety | Fast blow glass fuse |
| Overcurrent: | Tripping |
| Operating Temperature | 0-55°C, 5-90% RH non condensing |
| Output Current leads PVC insulated 2.5 sq. mm cu cables 2X1.5mtr lug at both ends PVC insulated 10 sq. mm cu cable 2X1.5mtr lug at both ends PVC insulated 16 sq. mm cu cable 2X1.5mtr lug at both ends PVC insulated 25 sq. mm cu cable 2X1.5mtr lug at both ends PVC insulated 50 sq. mm cu cable 2X1.5mtr lug at both ends | |
