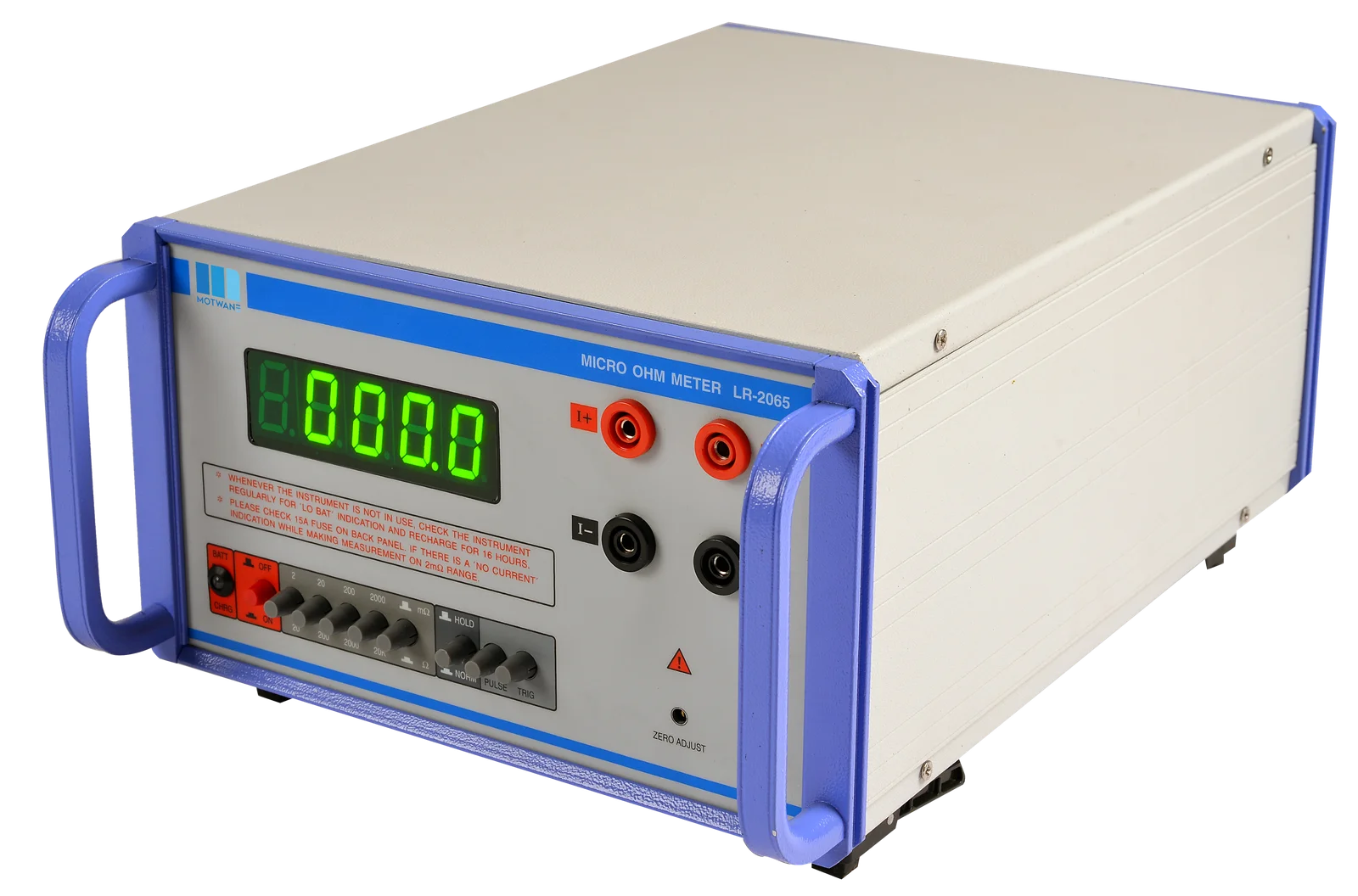

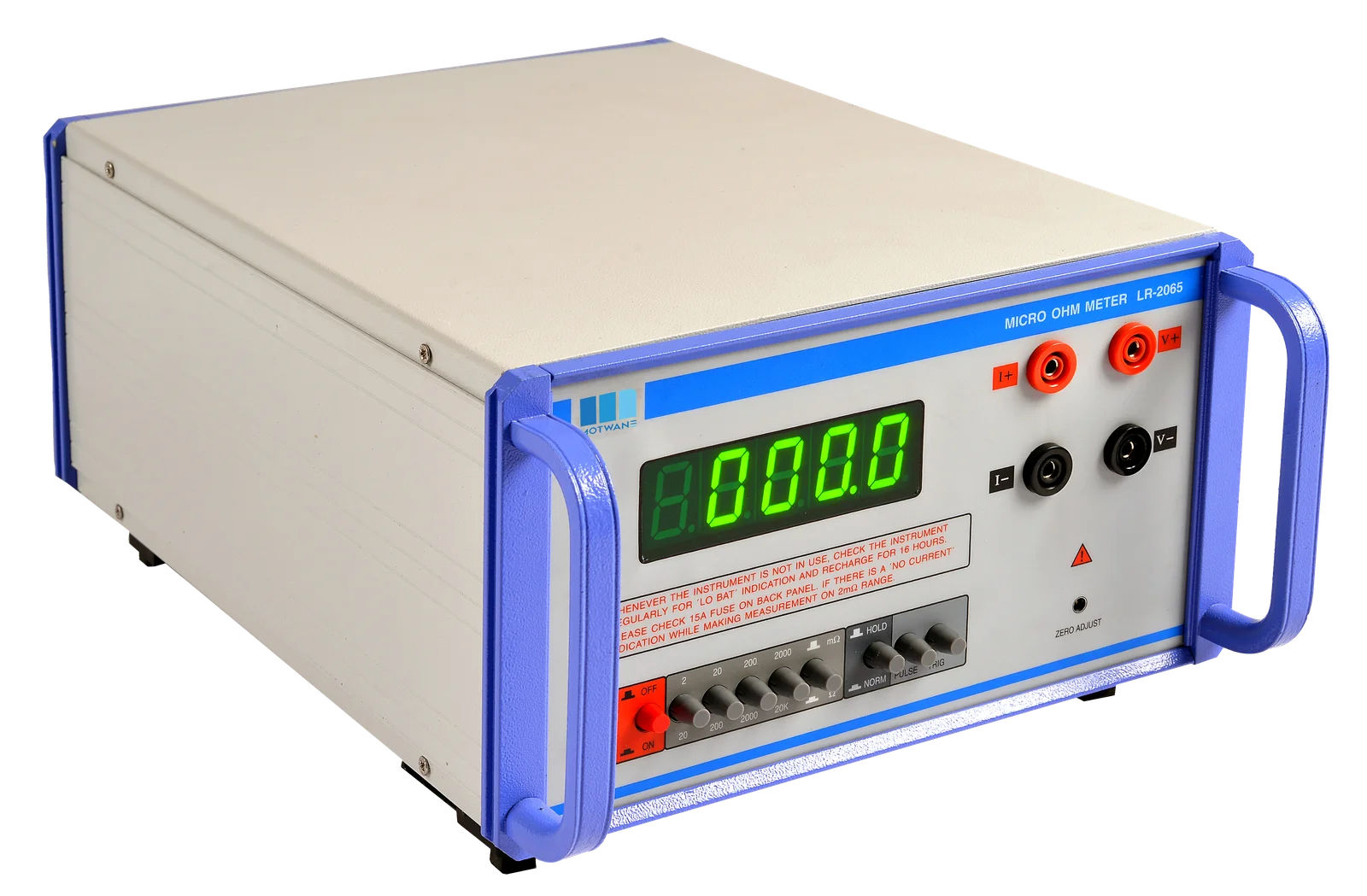

Micro Ohm Meter
The Motwane LR-2065 Digital Micro-Ohmmeter is a top-notch tool crafted for measuring extremely low resistances, down to just 0.1 μΩ, with remarkable accuracy.
With the ability to inject a maximum of 10A DC current, it provides quick and stable readings, making it a must-have for testing, quality control, and maintenance in both electrical and industrial settings.
4½ digit LCD display
with annunciations
Resolution 0.1 µΩ
on 2 mΩ range
Mains cum Battery operated
(Rechargeable Ni-cd)
High measurement current of 10A for faster
settling of measured values on low resistance
True 4 wire resistance measuring technique
eliminates lead resistance errors
Pulse mode,
Auto hold operation
Technical Specifications
| Technical Specifications | |||
| Electrical Specification | |||
| At 25◦C ± 3◦C 55 % RH ± 10% Temp. Co : 150ppm/◦C | |||
| Range | Resolution | Max Current | Accuracy ±(%rdg + Digits) |
| 2 mΩ | 0.1 μΩ | 10:00 AM | ± 0.03%±4 |
| 20 mΩ | 1 μΩ | 1:00 AM | ± 0.03%±4 |
| 200 mΩ | 10 μΩ | 0.1 A | ± 0.03%±4 |
| 2000 mΩ | 100 μΩ | 0.01 A | ± 0.03%±4 |
| 20 Ω | 1 mΩ | 0.1 A | ± 0.03%±4 |
| 200 Ω | 10 mΩ | 0.01 A | ± 0.03%±4 |
| 2000 Ω | 100 mΩ | 1 mA | ± 0.03%±4 |
| 20 kΩ | 1 Ω | 0.1 mA | ± 0.03%±4 |
| *Current supplied through a battery. | |||
| General Specification | |||
| Warm-up time to stated accuracy: 2 to 5 minutes | Over range: Blinking Zero Display | Dimension (D*W*H) : Approx. 340mm X 258mm X 145mm | Net weight: Approx. 4KG with batteries |
