Contact Resistance Meter

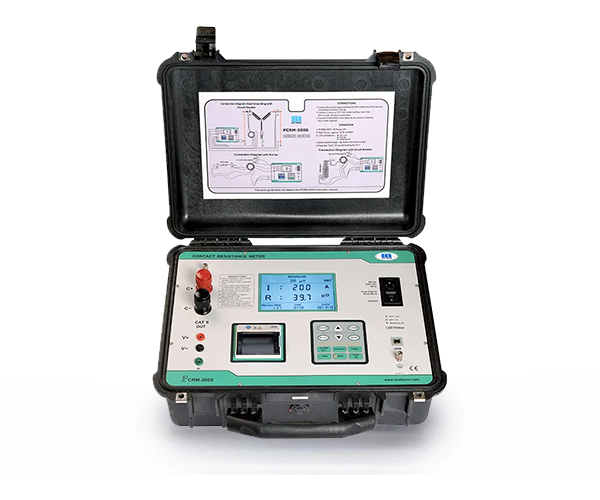

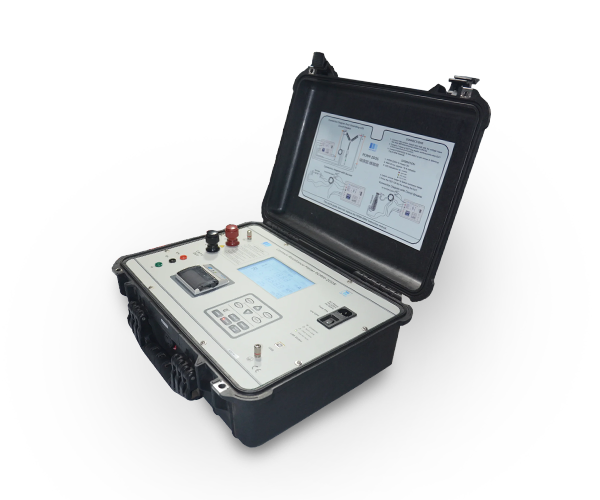

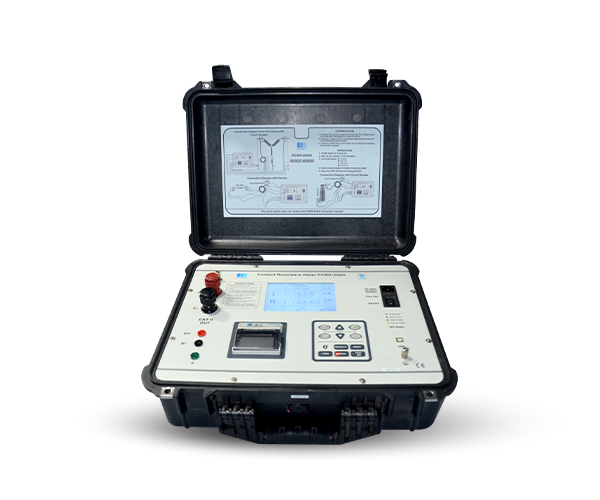

The Motwane PCRM-200S & PCRM-100S is a top-notch Digital Contact Resistance Meter designed for precise measurement of ultra-low resistances in the micro-ohm range. Built with reliability in mind, it employs the Kelvin four-wire method to ensure accurate results by eliminating errors that can arise from lead resistance.
Fully automatic testing
– Micro processor controlled
Safe test – Dual Ground
and Remote control
Remote Control via
PC application
True DC – ripple
free current
Lightweight suitcase – withstands
the impact of water, dust or sand
Bluetooth enabled for
Motware mobile application
– Pulsating DC Current
– Direct mV Drop Reading
– Dual Grounding Facility
– Calibration Due Indicator
– LED Indication for Mains/Battery/LOBAT
– Mains and Battery Operated
Technical Specifications
| Technical Specifications | |||
| Test Current Injection | 100A & 200A DC | ||
| Test ON Alert | BEEP | ||
| Range & Resolution | 20µΩ with 0.1µΩ 200µΩ with 0.1µΩ 2000µΩ with 1µΩ 20mΩ with 0.01mΩ | ||
| Measurement Principle | Four wire measurement | ||
| Basic Accuracy | ± 2% of reading, ± 5 digits | ||
| Memory Storage | 199 reading storage facility | ||
| Computer Interface | USB | ||
| Thermal Printer | For printing the test results | ||
| Display | Custom Built 3 ½ digits LCD Display with backlight. | ||
| Physical Specifications | |||
| Enclosure Material | Industrial grade polypropylene | ||
| Dimensions (DxWxL) | 188mm x 395mm x 502mm | ||
| Weight | 13 Kg | ||
| Power Supply | |||
| Mains | 115V-230V, 50Hz / 60Hz single phase AC supply | ||
| Battery | Rechargeable Li-ion | ||
| Power Consumption | 35VA, 6.0 watt on battery | ||
| Environmental | |||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | 0°C to 50°C | ||
| Humidity | less than 95% RH, non condensing | ||
| Safety Standards | |||
| Safety | According to EN 61010 – 1 | ||
| EMC | According to EN 61326 – 1 | ||
| IP Rating | IP 54 | ||
| Measurement Category | CAT II | ||
| CE certification | LVD: 2006/95/EC | ||
| EMC certification | 2004/104/EC | ||
| Software Details | |||
| Type | Windows-based software | ||
| Interface | USB Data Transfer: Real-time data | ||
| Internal Data Storage | 199 test results | ||
| Features | Remote operation Data downloading Analysis and report generation | ||
| Standard Accessories | |||
| 15 meters lead set with C Clamp 75mm opening | |||
| Master earthing cable (7 meters) | |||
| Mains power cord | |||
| User manual | |||
| Calibration certificate | |||
| Thermal paper roll | |||
| Spare fuse (250mA/250V slow blow) | |||
| Optional Accessories | |||
| 22 meters lead set with C Clamp 150mm jaw size | |||
| 15 meters heavy duty lead set with alligator clip | |||
| Software and USB cord | |||
| Bluetooth application via cloud-based Motware application | |||
